Stationary & Mobile Type

ModelADM 45ADM 50ADM 60
Capacity40-60 TPH60-90 TPH90-120 TPH
Salient Features Stationary Plant:
  • Easy Operation and Less maintenance.
  • Designed for the International Market.
  • Modern Drum Mix Technology.
  • Proper Asphalt Coating and saving.
  • Proper Drying and Homogeneous Mixing of Aggregate.
  • Less Fuel Consumption.
  • Continuous Electronic Belt weighing system with Load cell.
  • SCADA / PLC based control panel with online print out facility.
  • Schneider make HMI with touch screen.
Salient Features of Mobile Plants
  • Easy to Operate
  • Modular Design For Transport
  • Completely Pre Wired Get set and Go
  • No Civil Works Massive saving
  • SCADA / PLC Based control Panel with online print out facility.
  • Complete chassis with wheel Hub axle assembly in chassis with Drum Front rear break kaman patta Air tank landing gear king pin wheel rims, tyres.

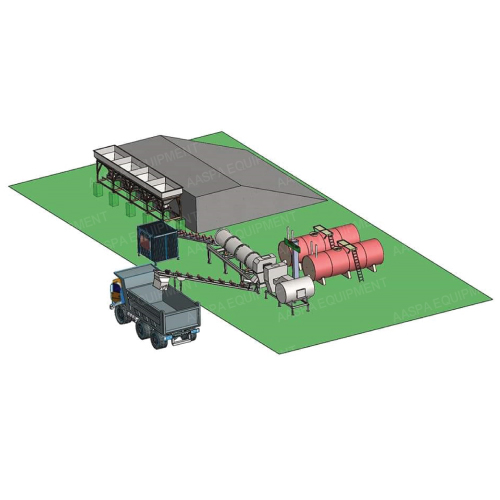

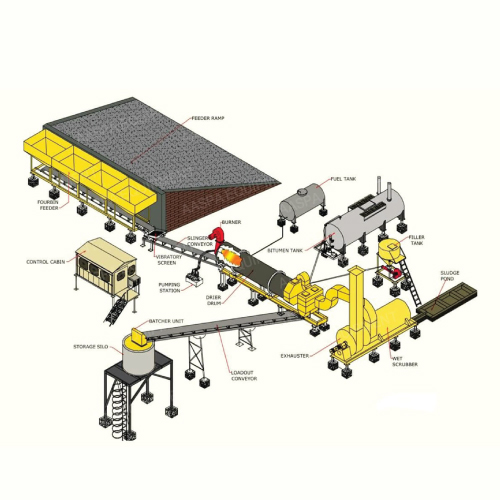

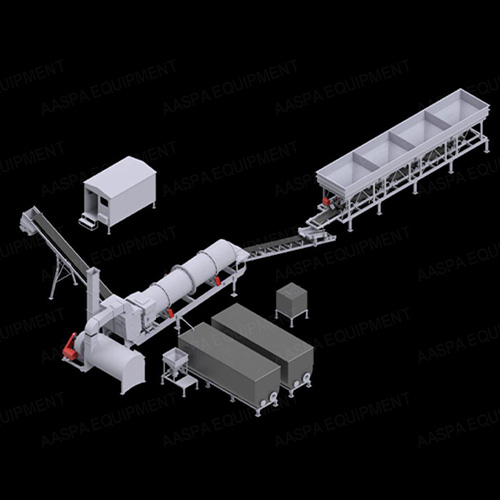

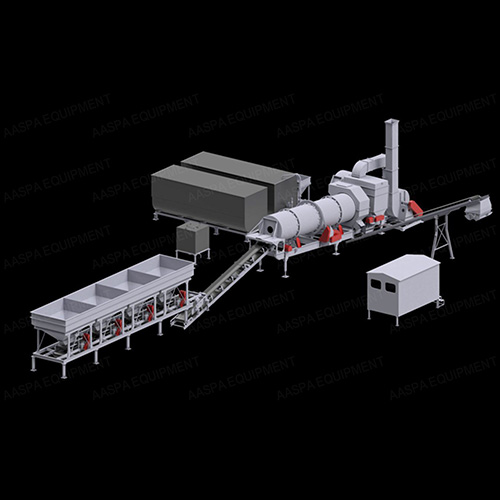

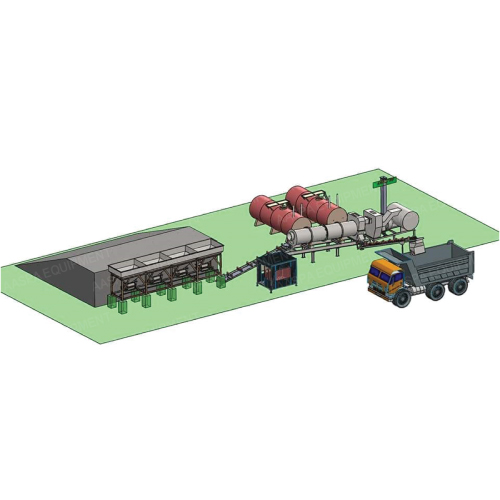

We are leading manufacturer and supplier of Asphalt Drum Mix Plant in Ahmedabad, India. Specifically created for the manufacturing of hot-mix asphalt used in road construction and maintenance, an asphalt drum mix plant is a vital part of the construction sector. This complex piece of equipment effectively blends bitumen, aggregates, and other necessary components to produce a consistent and long-lasting asphalt mixture. Drum mix machines operate constantly, unlike batch plants that manufacture asphalt in discrete batches, making them extremely efficient and perfect for large-scale projects.

The revolving drum, where aggregates are heated and combined with hot bitumen to create the asphalt mixture, is the center of an asphalt drum mix plant. High levels of automation and exact temperature and proportion control throughout the process guarantee consistency and high-quality results. These facilities are essential for the building and upkeep of roads, bridges, and other infrastructure projects because of their reputation for dependability, speed, and capacity to generate a wide variety of asphalt mixtures. An asphalt drum mix plant is a crucial instrument in contemporary building projects because it improves the smoothness of road surfaces, lowers maintenance costs, and increases motorist safety.

Technical Specifications

MODEL ADM – 20 ADM – 45 ADM – 60 ADM – 90 ADM – 120 ADM – 150
CAPACITY RANGE (TPH)* 15 to 20 30 to 45 45 to 60 60 to 90 90 to 120 120 to 150
DRYER
Length (m) 5 6.2 6.2 6.75 6.75 8.5
Diameter (m) 1.05 1.13 1.22 1.5 1.02 2.1
Insulatin (Cerawool in mm) 25 25 25 25 25 25
Exhauster (CFM) Burner 5500 7500 10500 14500 18500 22500
Rating (Ltrs./Hr.) 150 150 250 50 560 900
BIN FEEDER
No of Bins 4 4 4 4 4 4
Bin Capacity (MT) 8 8 11 11 13 13
Belt Feeder width (mm) Gathering 500 500 500 500 500 500
Conveyor width (mm) 600 600 600 600 600 600
SLINGERCONVEYOR
Conveyor Width (mm) 600 600 600 600 600 600
LOADOUT CONVEYOR
Conveyor width (mm) 600 600 600 600 600 600
Loadout Height (m) 3.2 3.2 3.2 3.2 3.2 3.2
Hopper Capacity (kg) 800 800 800 1000 1000 1000
POWER REQUIREMENTS
Drum Drive (HP) 10 15 20 30 40 60
Exhauster (HP) 10 15 20 25 50 75
Bin Feeder Hopper (HP) 4 x 2 4 x 2 4 x 2 4 x 2 4 x 3 4 x 2
Gathering Conveyor (HP) 3 5 5 5 7.5 7.5
Slinger Conveyor (HP) Vibratory 3 5 5 5 7.5 7.5
Screen (HP) Loadout Conveyor 1 1 1 1 2 2
(HP) Hydraulic Powerpack (HP) 3 5 0 0 7.5 7.5
Bitumon (Asphalt) Pump (HP) 2 2 2 2 5 5
FillerUnit 3 3 3 3 3 5
Rotary Valve (HP)
Blower (HP) 1.5 1.5 2 2 5 5
Dryer Automatic Burner 5 5 5 5 5 5
Fuel Pump (HP) 2 2 2 2 3 5
Blower (HP) 3 3 5 10 15 25
Hot Oil Pump (HP) 0.5 0.5 0.5 0.5 0.5 0.5
BITUMEN TANK
Capacity (MT) 15 15 15 20 20 15 x2
Insulation (Glasswool in mm) 50 50 50 50 50 50
FUELTANK
Capacity (Ltrs.) 2500 2500 5000 5000 5000 10000
TOTAL CONNECTED LOAD LOAD (KVA) 80 100 120 135 220 300

Drum Machines

The 60-120 TPH plants are supplied with a low maintenance cradle type drum drive. The auto lubrication system ensures proper and adequate lubrication on the chain drive thereby ensuring long years of trouble free service. Optionally a four wheel friction drive, which is a standard on the 150 TPH and higher models, can be supplied. Specially treated sprockets, trust wheels, trunion rings and trunion rollers, engineered precisely for flawless and trouble free dryer drum rotation, ensures unlimited productivity.

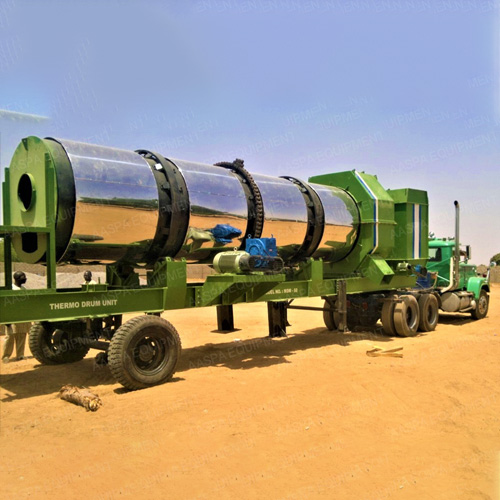

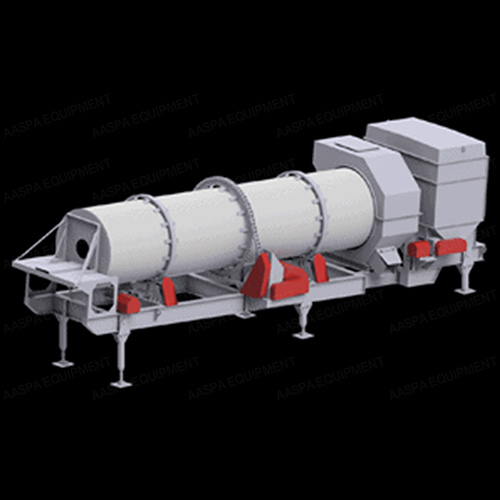

THERMO DRUM The drying and mixing unit of the asphalt plant demands complex flight design and heat transfer technology. With its continuous R & D and incorporation of the latest design up- gradations. Aaspa thermo drum is miles ahead of competition. The Aaspa thermo drum unit follows a triple heat transfer system that ensures a total transfer of heat to the aggregates translating into higher productivity and lower fuel consumption. The heat is transferred to the aggregates using the conductive, convective and radiation techniques. The unique flight design ensures total heat transfer, a through mixing & coating, lower emissions and prevention of bitumen oxidation

Burner

Thermo drum burner is the heart of the entire system hence its efficiency, ease of serviceabillity etc. are most important factors

  • Two stage high & low
  • Capacity to reduce the moisture up to 0.5% and achieve 180 Deg. Celsius for aggregate.
  • Able to use LDO / FO / Diesel as fuel.
  • Nozzle cleaning is possible during running condition.
  • Fully automation operation.

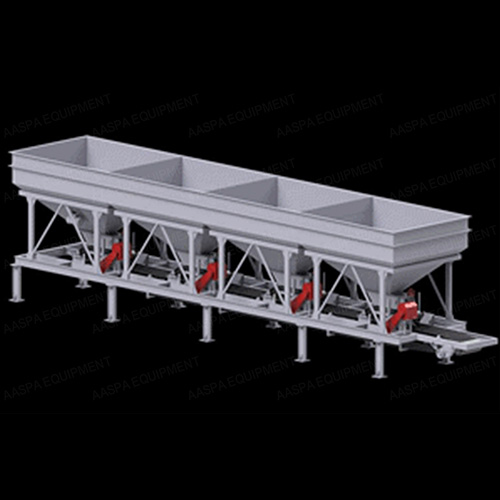

Cold Aggregate Bin Feeder Unit

Four Bin Feeder Unit with AC variable frequency invertors based variable speed drives and calibrated volumetric gate controls on all four bins, programmable bin vibrator on sand bin, Gathering conveyor & Slingers conveyor. Aggregate flow indicators are mounted on each bin to indicate the on/off now of the aggregates from each bin. The bins shall be fabricated from special Structural steel, with wear strips. Supplied with high efficiency gear motors. Unit shall be supplied complete with safety mesh and protection. The feeders are fully computerised controlled and gradation can be changed on the go. The unit shall also be supplied with calibrated gate openings for very precise controls of the cold mix gradation.

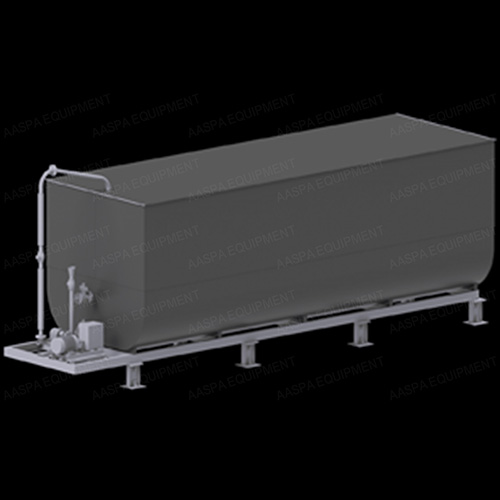

Bitumen Heating & Storage Tanks

Fully insulated double walled tank is equipped with separated high – pressure electronic burner for heating the Asphalt and control unit capable of metering and spraying required quantity of bitumen at specified temperature.

The positive displacement jacketed Asphalt pump coupled with reduction gearbox and variable speed motor is provided with hot oil circulating  system.

All the Asphalt carrying pipelines are hot oil jacketed and thoroughly Insulated with asbestos tape.

  • External insulation  with  ceramic  wool  and  covered  with suitable thick sheet.
  • Tested tube nest for diathermic oil circulation.
  • Thermic duct, manhole, lifting hooks, breather pipe.
  • Electronic high-pressure jet burner.
  • Heavy duty jacketed Asphalt pump
  • Thermometers.

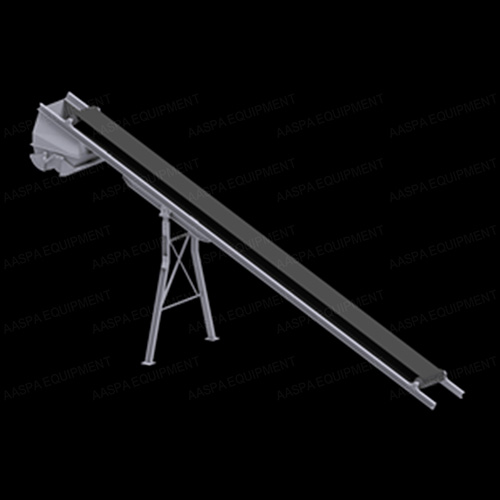

Discharge System

Anti segregation gob hopper complete with high temperature conveyor for discharge of mix waiting dumpers / trucks. The opening and closing of a hydraulic cylinder and hinged doors for opening and closing of the hopper. A hydraulic power pack is supplied for operating the hopper, complete with hosepipe connections mounted separately.

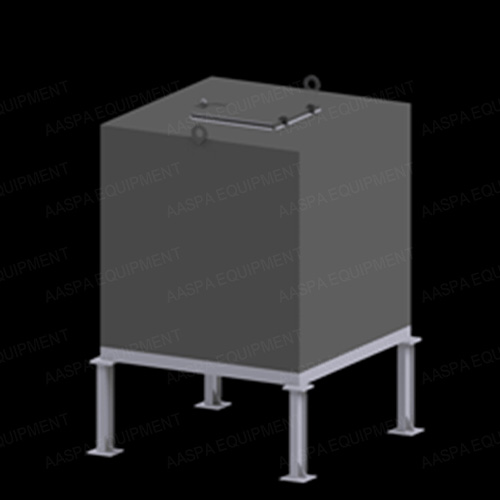

Fuel Storage Tank

Aaspa offers Fuel Storage Tank For Use Fuels of Dryer Burner Unit & Bitumen Tank Burner for Heating Arrangements.

Filler Storage Unit

Aaspa offers a wide range of Mineral filler storage and feeding solutions for the customers to choose from, depending on the site requirements. A variable speed computerized synchronized metering system ensures the right proportioning in the mix.

Weighing System

A continuous electronic belt weighing system with load cell is mounted on the slingers conveyor for weighing the aggregate flow in tons per hour. Which is to be fed in to dryer drum. The belt weighing system is further synchronized by the computer to ensure precise metering of bitumen. It indicates the ‘FED’ in tons/HR., with cumulative readout and totalize.

Pollution Control Unit

PCU Series is a venture type high effectively wet dust collector that maintains the required environmental standards in specified areas. The extreme turbulence type venture design ensures a very good entrapping of the dust laden exhaust gas, large stainless steel spray nozzles provide a dog free operation and assure minimum water make-up requirements. The adjustable venture throat permits “fine tuning” to get optimum cleaning efficiency to meet specific plant operating requirements.

Control System

Fully computerized control cabin with AC on board electrical power control console, distribution switch board, fully automatic process and sequence controls are a standard on all Aaspa DM series plants.

A user Friendly software gives you total reliability and ensures top notch performance.

Fail proof power interlocks and auto process controls. Online fault detection, Online printing facility Provisions to print, store and edit production details, mix proportions. etc. Display of all process control parameters, Auto I manual operation. The control is equipped with function keys and numeric keys and does not require special skills for operation.
