We provide a Mobile Concrete Batch Plant on well-defined parameters of quality such as strength, capacity, and its functionality. We have a team of experts involved in meeting the high demands of our valuable clients.
Mobile Concrete Batch Plant Manufacturers are a kind of portable concrete machine and we are the leading Manufacturer, Supplier and Exporter of Mobile Concrete Batch Plant in Ahmedabad, Gujarat, India. Compared to stationary concrete batch plant it is flexible to move, therefore, this kind of machine is more suitable for construction projects of the short period, long construction line, and need to change the construction site momentarily and more and more users would like to choose this mobile batch machine to finish their construction projects at a temporary place
Description

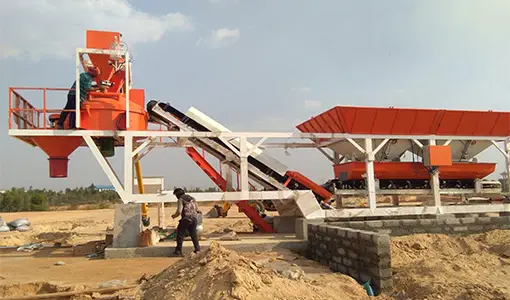

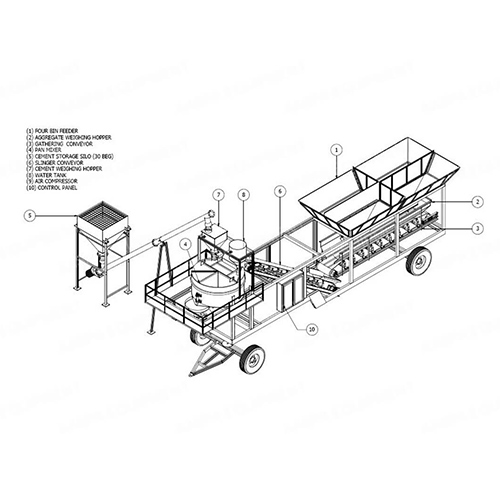

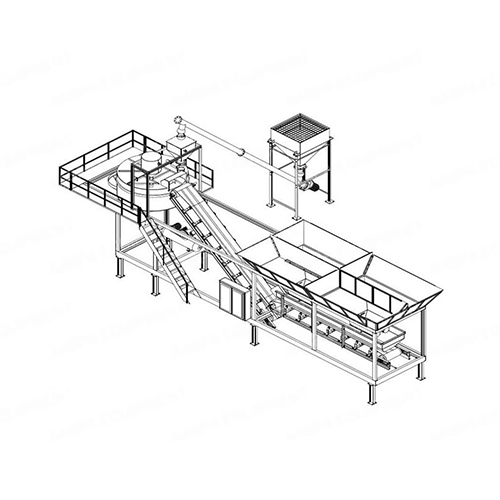

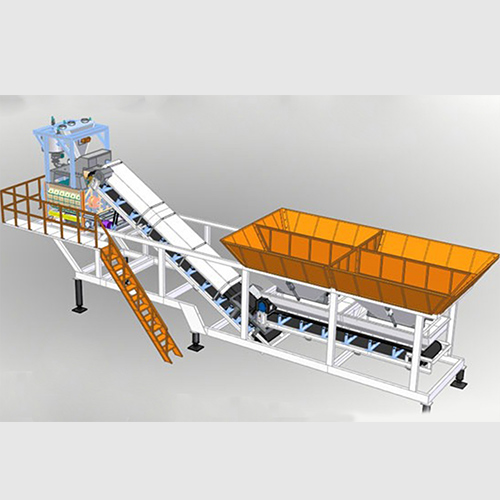

Mobile plants consist of portable shaft mixers that are designed to be moveable and thus are installed on towable chassis with wheels for maximum mobility and quick setup at any place. A mobile concrete batch plant is perfect for temporary construction sites or construction projects where the equipment would only be needed for specific and short portions of the projects. A portable concrete mixing machine can be easily installed and dismantled and as such it requires very minimal preparation or set up before use so it is very convenient.

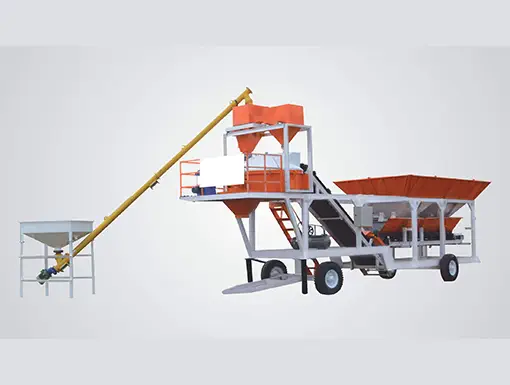

First of its kind giving a discharge height of 2 meters from the ground level which makes it useful for using a concrete pump as well as transit mixer on-site where the plant is shifted frequently at various site location to meet the concrete mixing requirement. Fully automatic mobile type batching plant with whole plant assembly on single chassis with tow facility makes it effective for use. With the help of a tractor, one can easily move the plant on-site and easy to erect and commission the plant as no need to make foundations and the control panel is also fitted on the same chassis with internal cabling and an inbuilt water tank.
Mobile Concrete Batch Plant Manufacturers are the product of sophisticated engineering work. All units are placed in a smaller area through aesthetic design. They are also preferred by ready mixed concrete companies for major construction projects to which they supply concrete, by establishing a mobile concrete plant within the area of a project to make concrete production only for that project.
Features of Mobile Concrete Batching Plant
- Can handle up to 40 mm. down aggregate size.
- Higher accuracy because of higher capacity and more no. of load cells.
- 20 cum/hr concrete output with a mixing time of 90 seconds in continuousย operation.
- Mixing through reversible drum mixer.
- Can shift mobile batching plant by toeing with tractor.
- Fully automatic PLC control system HMI.
- Separate weighing for aggregate, water and cement, with higher accuracy.
- Size is very compact & no need make a heavy ramp for dumping material.
- Easy maintenance and low running cost.
Optional Accessories of Mobile Concrete Batching Plant
- Computer SCADA system and software
- Flyash feeding system and storage silos
- Prefab cabin for control panel
Technical Specification

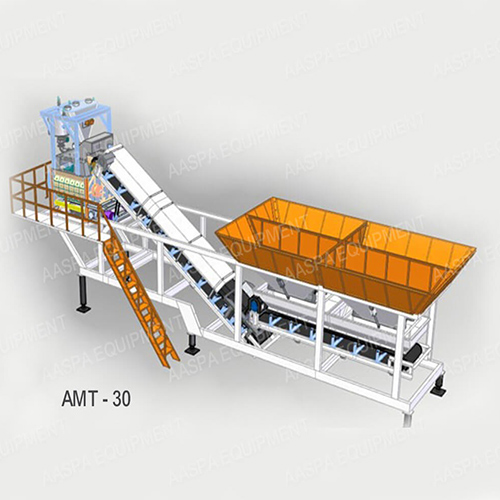

| Model | AMP 15 | AMP 18 | AMP 20 | AMP 25 | AMP 30 |
| Turbo Pan Mixer Dia. | 1800 | 2000 | 2000 | 2450 | 2450 |
| Batch Size | 0.5 m3 | 0.75 m3 | 0.8 m3 | 1.25 m3 | 1.25 m3 |
| Cycle time at concrete on ground level | 120sec | 150sec | 140sec | 180sec | 150sec |
| Sand / aggregate hopper cap | 2.5 m3 Each | 3.5 m3 Each | 3.5 m3 Each | 3.5 m3 Each | 4.5 m3 Each |
| No of silo | 3 | 4-Mar | 4 | 4 | 4 |
| cement hopper cap | 1 m3 | 1 m3 | 1 m3 | 1 m3 | 1 m3 |
| Cement Screw Conveyor | 168 x 3.625 mt | 219 x 3.625 mt | 219 x 3.625 mt | 273 x 3.625 mt | 273 x 3.625 mt |
| Water Tank cap | 200 lit | 400 lit | 400 lit | 750 lit | 750 lit |
| Additive tank cap | 100 lit | 100 lit | 100 lit | 125 lit | 125 lit |
| water meter | Provided | Provided | Provided | Provided | Provided |
| water level controller | Provided | Provided | Provided | Provided | Provided |
| Agg. Dosing Belt conveyor width | 500mm | 500mm | 500mm | 500mm | 500mm |
| Mixer Gearbox Lubrication | Provided | Provided | Provided | Provided | Provided |
| No of Loadcell for mixer | 2 ton 3 nos | 2 ton 3 nos | 2 ton 4 nos | 2 ton 4 nos | 2 ton 4 nos |
| No of loadcell for cement hopper | NA | NA | NA | NA | NA |
| Jack hand operated | 03 nos+ 02 nos support | 03 nos+ 02 nos support | 03 nos+ 02 nos support | 05 nos | 05 nos |
| Gearbox for mixer (Bonfiglioli) | 3 07 L 2 46.7 HC P180 O | 3 07 L 2 46.7 HC P180 O | 3 07 L 3 74.1 HC N180TC O | 3 07 L 3 62.6 HC P200 O | 3 07 L 3 62.6 HC P200 O |
| Gearbox fo charging conveyor | Box90-i=15:1 | Box90-i=15:1 | Box90-i=10:1 | Box90-i=15:1 | Box110-i=10:1 |
| Charging Conveyor GB Motor HP | 5 | 5 | 5 | 5 | 7.5 |
| Power pack for Discharge gate | 2 HP @ 10 ltr cap | 2 HP @ 10 ltr cap | 2 HP @ 10 ltr cap | 2 HP @ 10 ltr cap | 2 HP @ 10 ltr cap |
| Tyre | 8.25-16 ltr-04 nos | 8.25-16 ltr-04 nos | 8.25-16 ltr-04 nos | 8.25-16 ltr-06 nos | 8.25-16 ltr-06 nos |
| Axle | 75mm x 02 nos | 75mm x 02 nos | 75mm x 02 nos | 75mm x 03 nos | 75mm x 03 nos |
| Hub for wheel | 8โณ x 04 nos | 8โณ x 04 nos | 8โณ x 04 nos | 8โณ x 06 nos | 8โณ x 06 nos |
| Main Chassi Structure | ISMC 150 x 75 | ISMC 150 x 75 | ISMC 150 x 75 | ISMC 200 x 75 | ISMC 200 x 75 |
| Loadout conveyor (Optional) | 800mm x 12 mtr | 800mm x 12 mtr | 800mm x 12 mtr | 900mm x 12 mtr | 900mm x 12 mtr |
