TANK

The tank is fabricated by a 5mm MS sheet and is coated with 40 mm glass wool. This is done to prevent heat loss. The outer covering is galvanized. Galvanized tank is better as it has long life due to its anti-corrosion properties Tank heating is the first stage. The heating pipeline of diameter e inches and the second stage is 6 inches. Manhole for maintenance or to all bitumen tank is if 500mm X 600mm. A manual Temperature gauge is provided for temperature display up to 300 Degrees Celsius.

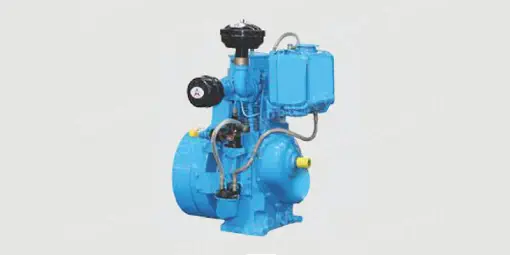

ENGINE

Single stage air cooled diesel engineer of 6.5 HP at 1500 RPM, Engine powers bitumen pump and air compressor. Fuel consumption is 0.7-1 Liters per hour.

Latest Searches of Bitumen Emulsion Sprayer

  • Top Tractor Mounted Bitumen Sprayer
  • Best Bitumen Emulsion Sprayer Equipment
  • Bitumen emulsion sprayer BS-200 Price
  • Best Bitumen emulsion sprayer BS-1000
  • Semi Automatic Bitumen Sprayer Price
  • Top Bitumen Emulsion Sprayer With Dust Remover
  • Best Bitumen Emulsion Sprayer with Compressor
  • bitumen sprayer price
  • Top emulsion sprayer equipment
  • Best bitumen hand sprayer for sale

BURNER

Single high pressure oil burner for adequate heating of viscose binder with oil consumtion of 7-8 Liters/hrs. Burner comatible with Diesel.

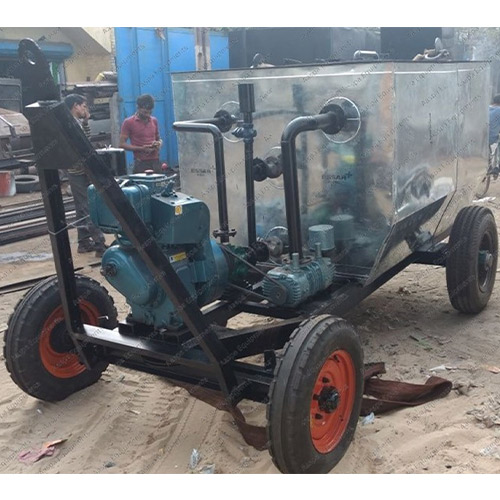

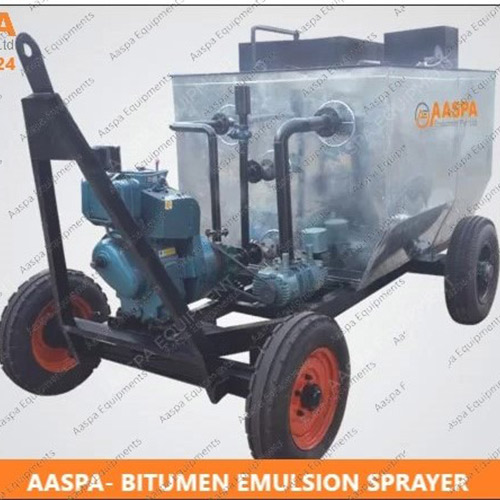

BITUMEN PUMP AND AIR COMPRESSOR

Both bitumen pumps and air compressor are engine dilven. Bitumen pump is connected to the engine by a manual clutch. Just on gaging the clutch will activate the pump. Bitumen pump gear type 200 to 300 Liters per minute. 2 HP Single piston air compressor is provided.

Technical Specifications

BITUMEN TANKCapacity : 3000
Liters Shape : U Shape
Insulation : 40 mm thick with glasswool
Temp. Gauze : 0-300°C
Main Hole : 450 mm in diameter
Mounting : Self chassis mounted on wheels
MANUAL HANDSPRAYINGPipe Length : 3 meters
Type of Pipe : S.S. corrugated hose pipe
Spraying Pressure : 0-3 Kg./cm2
BITUMEN PUMP1.5″x1.5″ Size positive displacement gear pump without put of 200-300 liters/min.
AIR COMPRESSORStanding make Air compressor
BURNERFuel consumption 7-8 liters/hour
ENGINE FUEL TANKCapacity 5 liters
BURNER FUEL TANKCapacity 20 liters
ENGINEStandard make air cooled diesel engine powered by 6HP.
