Technical Specification
| Model | Unit | AKM-1300 |
| Max. standard paving width | m | 2.5 |
| Max. separation barrier paving height | m | 1.2 |
| Horizontal stroke | mm | 770 |
| Vertical stroke | mm | 410 |
| Manual adjustment | mm | 160 |
| Paving speed range | m/min | 0 -15 |
| Minimum turning radius | mm | 1200 |
| Diesel tank | L | 320 |
| Hydraulic oil tank | L | 130 |
| Water tank | L | 320 |

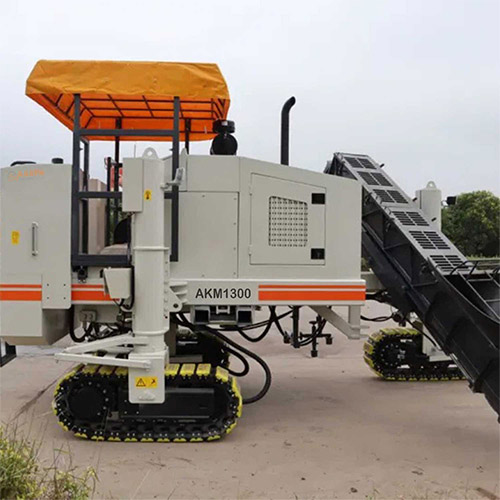

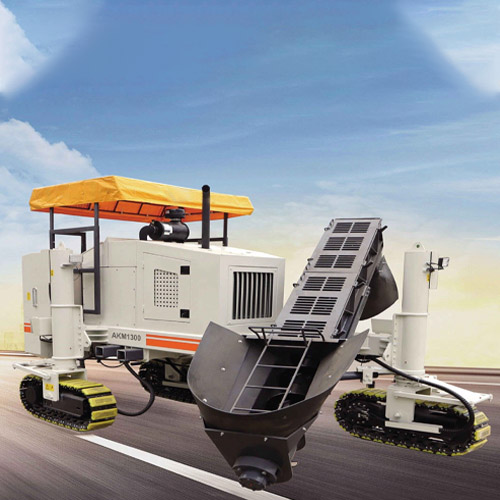

Kerb paver Machine AKM-1300 versatile slip form paver.
Aaspa Kerb paver AKM1300 is a type of paver suitable for high quality concrete construction. Compact and reasonable structure, full hydraulic design, easy and quick for extensions; Double independent control system provides a strong guarantee for the perfect operation; accurate matching of mechanics, electrics and hydraulics, suits slip-form construction for various kinds of concrete construction including curb, road shoulder, ditch, anti-collision wall.
Specs & Compare
| Model Number | AKM-1300 |
| Brand Name | Aaspa Equipment |
| Place of Origin | India |
| Paving Width | 1.5m |
| Max. Paving Thickness | 1.2m |
| Production Capacity | 15m/min |
Hinged feeder
Overall length 3.7m, diameter 402mm; high-strength casting spiral blade, airtight conveying structure, direct driven by high torque hydraulic motor; hydraulic angle and length adjustment.
Control system
Providing electronic hydraulic information of longitudinal gradient, transverse gradient and front and rear steering.
Crawler and column
Tamper
Six hydraulic tamper circuit, independent speed adjustment, best accuracy for sensitivity regulation and dead zone adjustment, self-diagnostic function, off-line automatic shutdown.
