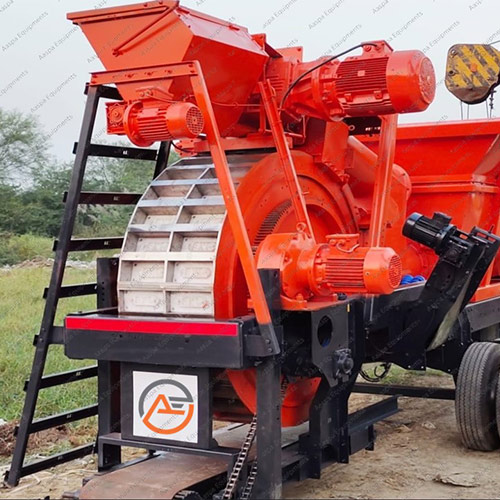

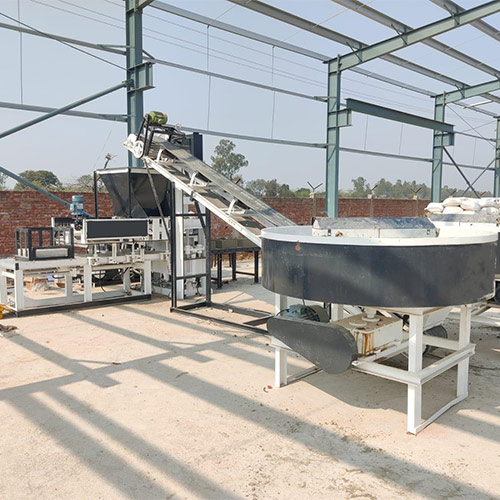

Fly Ash Brick Making Machines

Home 9 Product 9 Fly Ash Brick Making Machines

Fly Ash Brick Making Machine Capacity: 15360 Bricks/shift

No.	Property	HP/Cap.
1	Overall Dimension	8500 x 4880 x 3962 mm
2	Pallet size	565 x 550 x 18 mm
3	Cycle Time	15 – 20 Sec.
4	Vibration Frequency	50 – 90 Hz.
5	Installed Cap.	37.0 HP (27.5 KW)
6	Max. Product Height	200 mm
7	Machine Type	Multipurpose – Automatic
8	Hydraulic Oil Cap.	200 Liter
9	Material Compaction System	Dual Vibration + Pressure Based
10	Required Shed Area	3000 Sq. Ft

No.	Property	HP/Cap.
1	Overall Dimension	9500 x 5500 x 3962 mm
2	Pallet size	665 x 550 x 18 mm
3	Cycle Time	15 – 20 Sec.
4	Vibration Frequency	50 – 90 Hz.
5	Installed Cap.	47.0 HP (35 KW)
6	Max. Product Height	200 mm
7	Machine Type	Multipurpose – Automatic
8	Hydraulic Oil Cap.	200 Liter
9	Material Compaction System	Dual Vibration + Pressure Based
10	Required Shed Area	4000 Sq. Ft

No.	Property	HP/Cap.
1	Overall Dimension	10972 x 7925 x 4572 mm
2	Pallet size	875 x 550 x 25 mm
3	Cycle Time	15 – 20 Sec.
4	Vibration Frequency	50 – 90 Hz.
5	Installed Cap.	91 HP (67.8 KW)
6	Max. Product Height	200 mm
7	Machine Type	Multipurpose – Automatic
8	Hydraulic Oil Cap.	400 Liter
9	Material Compaction System	Dual Vibration + Pressure Based
10	Required Shed Area	5000 Sq. Ft

No.	Product/Output	AC 1400 (PCS/HOUR)	AC 1800 (PCS/HOUR)	AC 2500 (PCS/HOUR)
1	Fly Ash Brick (With Frog) 230 x 110 x 75	1920	2400	2880
2	Fly Ash Brick (Without Frog) 230 x 110 x 75	2400	2880	3700
3	Fly Ash Brick (With Frog) 190 x 90 x 90	2400	2880	3290
4	ZIG-ZAG Shape Paver Block 225 x 112.5 x 80	1080	1440	2160
5	I Shape Paver Block (Without color) 200 x 165 x 80	1080	1080	1440
6	Solid Concrete Block 300 x 190 x 150 300 x 190 x 100	540 720	720 900	750 1260
7	Hollow block 390 x 190 x 190	360	360	720
8	Retain Block 450 x 300 x 190	120	240	240
9	Ventilation Block 225 x 225 x 100	720	720	1080
