Xl750 Curb Paver Machine

Home 9 Product 9 Xl750 Curb Paver Machine

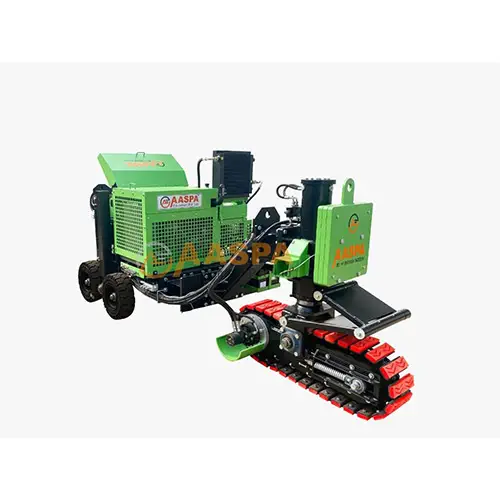

AASPA XL750 SLIPFORMERS NEW IMPROVEMENTS FROM AASPA

AASPA designers have developed and improved upon the ever popular aaspa xl750 slipformer making the machine more operator and service friendly. The console shown left is clear and concise allowing the operator to concentrate on the finished kerb.

Technical Specification of Xl750 Curb Paver Machine

Model XI750
Kerb Laying Capacity Minimum : 750 mm (W) X 575 mm (H)*
Engine Yanmar make water cooled diesel engine generating 36 HP (27.2 kw)
Vibrators Wyco USA
Hopper Capacity 0.5 cubic meters
Electrical System 12 V DC, Battery : 75 AH
Steering Type Power Steering
Sensing Moba control system
Breaking System Through planetary gear box with integrated hydro motor & brake.
Cylinders Lift front and steer 12″ x 3″
Capacities Fuel 46 Ltr./ Hydraulic 120 Ltr.
Wheels Heavy duty solid rubber tyres on heavy duty rims. Cast steel hubs and heavy duty stub axles on rocker beam for more consistent grade control
Speed Operating speed -2/3 mts/min. & Travel speed 15 mts/min.
Shipping  Dimension ( LxWxH) 3870 mm (12′ 8″) x 2305 mm ( 7’7″) x 1440 mm ( 4′ 9″)
Shipping Weight 3950 kg.
9

MOBILE AUTOMATION

MOBA MPA-100
The AASPA XL750 slipformer is now fitted with the new MOBA sensing system. An integrated digital control system for all functions allow the operator more flexibility with press button control and digital display fault finding.

9

YANMAR 3 CYLINDER TURBO CHARGED POWER

The power behind the AASPA XL750 slipformer has been increased and turbo charged with the new tnv series engine from yanmar delivering up to 37 hp and fitted with the ec150 engine management system allowing the service engineer push button access to the critical functions of the engine and is also fitted with an emergency shut down when low oil, water or charge is detected.

9

QUALITY COMPONENTS FOR RELIABLE PERFORMANCE

AASPA’S philosophy is to use the worlds best equipment in it’s products based on reliability and long term performance. The use of these components ensure you get quality and value for money in the aaspa xl750. You are assured of parts availability almost anywhere in the world.
9

SITE REPORT 159

The AASPA XL750 shown here set up to pour adjacent to and below pavement level is ideal for reconstruction work. The existing kerb is removed just prior to the new kerb being laid resulting in minimal disruption to householders and road users. The high strength slump concrete poured with the AASPA XL750 means they will never have to replace the kerb again. The quality of the finish straight out of the machine leaving hand finishing to driveways and link up.
