Vertical Storage Silo AS-75
AASPA 75 tones capacity cement silo AS-75 has a wide range of usage area from concrete plants to block machines and also ground study applications. AS-75 can be manufactured as bolted or welded type. 2 sets of bolted version of AS-75 can be shipped within 1 pcs 40 ft OT container or a truck.
AASPA AS-75 cement silo is equipped with maintenance platform between the legs, cement filling pipe, inner and outer manholes, safety guards, roof flanges for air filter and pressure safety valve, a roof gate for inner manhole and also a cone flange for butter fly valve.
AASPA AS-75 cement silo is supplied together with all necessary silo equipment such as cement screw conveyor with the desired diameter & length, air filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butter fly valve for manual cement discharging.

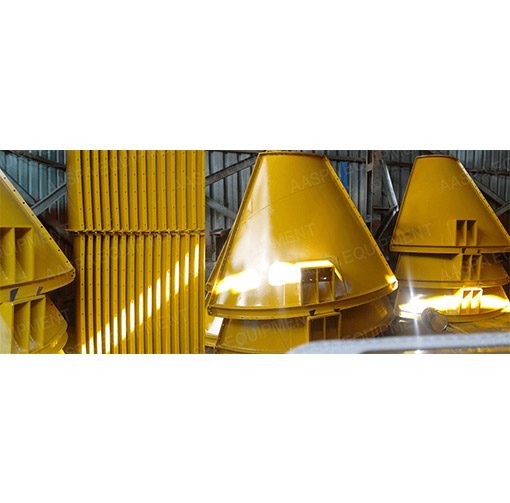

In case of manufacturing the bolted type version, parts of cement silos are manufactured by sensitive laser cutting and drilling methods. In the jobsite, parts of cement silos can be assembled easily and sensitively.
Specification
| Silo Capacity | 75 TONS, 58 m3 |
| Silo Height | 15880 mn |
| Silo Diameter | Ø 3060 mm |
| Quantity Of Silo Legs | 4 |
| Silo Output Diameter | – |
| Number Of Components | 98 |
| Silo Weight | 6360 Kg |
| Material Of Silo Legs | 219 x 5 mm, STEEL PIPE |
| Supports Of Silo Leg | NPL 80 mm CORNER IRON |
| Sheet Metals Of Silo Leg | 20 mm SHEET METAL |
| Conical Part Support Material | 100 mm STEEL C CHANNEL |
| Conical Part Material | ST – 37 -6 mm SHEET METAL |
| Silo Body Material | ST – 37 – 5 mm SHEET METAL |
| Silo Top Cover Material | ST – 37 – 4 mm SHEET METAL |
| Charging Pipe | 4″ STEEL PIPE UP TO SILO LEG |
| Inner Manhole Is Present | |
| Outer Man Hole Is Present | |
| Silo Roof Includes Handrails | |
| Maintenance Platform Is Present | |
| Structural Analysis Is Made For The Silos And Manufacturing Process Depends On Approved Projects. | |
