Wet Mix Dlc Plant
“AASPA” make GDB / DLC Plant is Robust, Most Versatile & Efficient used for achieving desire proportionate and homogeneous design mix of large volume continuously. This is a continuous mixing plant.

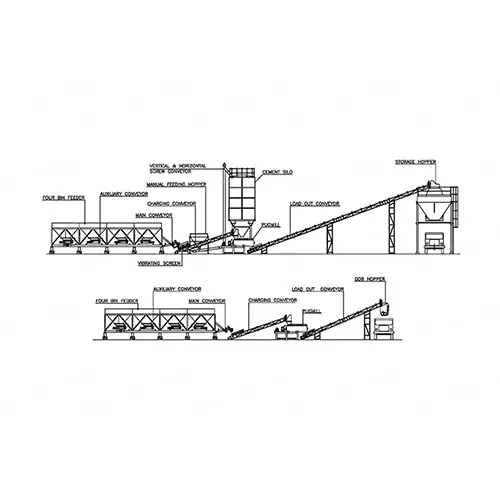

The plant consists of manually controlled feeding system for individual feeder unit. The material discharge from these feeders is delivered on to collecting belt conveyor. The aggregate is than fed to the pugmill unit thru inlet hopper. Cement / Fly Ash will fed thru cement/fly ash hopper to pugmill unit. The aggregate, water and cement / fly ash is thouroughly mixed in the pugmill and then discharge to the dumper truck by operating hydraulically operated discharge gate.
| PARAMETERS |
UNIT |
AEWD-250 |
AEWD-300 |
AEWD-350 |
| Output Capacity | TPH | 250 | 300 | 350 |
| Four Been Feeder | ||||
| Capacity | Cum. | 48 | 48 | 48 |
| Loading Width | Mtr. | 3 | 3.2 | 3.2 |
| Auxiliary Conveyor | mm/hp | 550/3 | 600/5 | 600/5 |
| Collecting Chonveyor | mm/hp | 750/10 | 800/12.5 | 800/12.5 |
| Vibrator for fine Agg. Bin | Hp | 1 | 1 | 1 |
| Pug Mill (Mixer) | ||||
| Capacity | Cum. | 2.75 | 2.75 | 2.75 |
| No. of Arms Pair | Nos. | 15(30) | 17(34) | 17(34) |
| Connected Load | HP | 40 | 50 | 60 |
| Water Pump | HP | 3 | 5 | 5 |
| Hydraulic Power Pack | HP | 3 | 5 | 5 |
| Gob Hopper | Kgs. | 2000 | NA | NA |
| Load out Conveyor 11 mtr Long | MM/HP | 750/12.5 | 900/15 | 900/15 |
| Storage Silo (Optional) | Ton | 30 | 30/50 | 30/50 |
| Load out Conveyor 18.3 mtr Long | MM/HP | 750/12.5 | 900/15 | 900/15 |
| Vibrating Screen (Optional) | HP | 3 | 5 | 5 |
| Slinger Conveyor (Optional) | HP | 750/10 | 800/12.5 | 800/12.5 |
| Total Connected Load | HP | 81.5 | 108.5 | 118.5 |
- Durable arms, tips & tiles made from Ni-hard steel fitted in pugmil
- Homogeneous mix achieved due to unique design of pugmil
- Sturdy, heavy duty and robust pugmill type mixer.
- Cost effective design of the plant to get more output from low
- Rock hopper design of the inlet hopper instead of standard design of hopper to get long life and less wear and tear of the hoppe
- Storage silo with Load out Belt Conveyor.
- Fully Atomization System with HMI & PLC based on meighment of all materia
- Water Tank.
