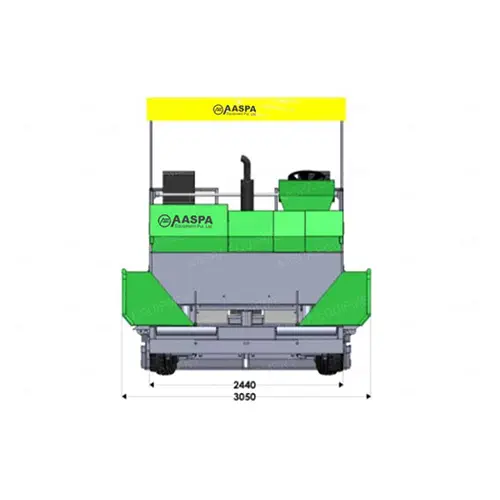

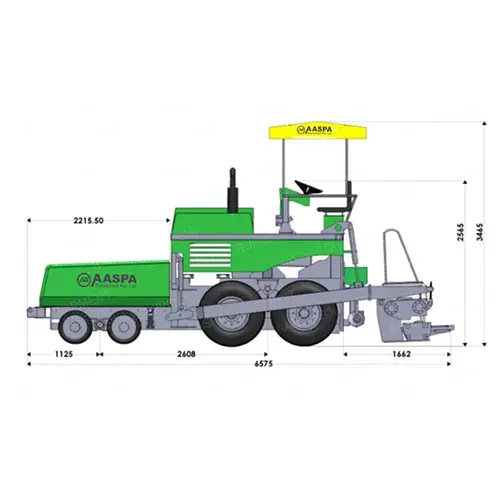

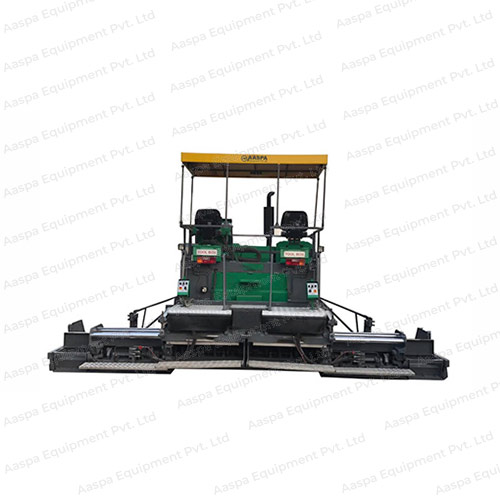

Sensor Paver Finisher
Keyfetures:
- Hydrostatic Transmission
- Engine Power 125 HP @ 2200 RPM
- Laying Capacity300TPH
- Hopper Capacity 4.25Cm
- Paving Width 2.5to5.5Mtrs
- Weight 14,600Kg.
- Four Wheel on Rear Axle
- Double Operator Seat
- Moba (Germany)Make Electronic Sensor
Benefits:
- Smooth Operation
- High Performance
- High Efficiency through Lubricating Process
- Easy and Low Cost Maintenance
- Simple and Time Saving Installation
Experience Smooth and Efficient Operations with Aaspa Equipment’s Advanced Stationary Concrete Batching Plant for High-Volume Production.
Technical Specifications of Sensor Paver Finisher
| POWER UNIT | |
| Engine | Kirloskar make water-cooled electric start Diesel engine, model 6R 1080 TA1, 125 HP (91.9KW) @ 2300 RPM or equivalent. |
| Electrical | System 12VDC |
| Emission Standard | BS-III |
| Speed Reduction | Two Speed Reduction Gearbox to Achieve |
| Gear Box | Low Speed for Pavingand High Speedf or Traveling |
| PERFORMANCE | |
| Laying Suitability | Option 1: Bituminous Material Option 2: Bituminous, Wet Mix, GSB, DLC, DBM Material (Dual Purpose)” |
| Laying Capacity | 300 TPH |
| Laying Thickness | 300mm (max)to 10mm(min),1 2″(max) to 3/8″(min) |
| Transmission | Hydrostatic |
| Working Speed | 0 to 30 M/min (max) |
| Travelling Speed | 0 to 16 Km/hr (max) |
| Weight | 14600 Kg Approx. |
| Slpoe & Grade Control | MOBA Germany Make Electronic Sensor (Auto and Manual Mode Available) |
| Maintenance Door | On Three Side of Machine |
| Traction & Conveyour Pump – Motor | Sauer Danfoss, Germany or Equivalent |
| OPERATOR SYSTEM | |
| Control Panel Type | Sliding |
| Operator Seat | Double Operator Seat |
| Travelling Function | Left & Right Side |
| Operating Function | Left & Right Side |
| Steering | Hydraulic |
| Brake | Caliper Disc Brake on both the sides |
| CONVEYOR & AUGER SYSTEM | |
| Conveyor & Augur | 2 Sets, One on each side |
| Conveyor Drive | Hydraulic |
| Conveyor Function | On/Off Switch |
| Augur Screw Size | Dia 300mm (12″”) |
| Augur Material | Ni-Hard / High Chromium Steel Material” |
| HOPPER & FEEDING SYSTEM | |
| Hopper Operation | Hydraulic |
| Hopper Capacity | 4.25 M3 (151 FT3) |
| Hopper Width | Working : 3.22 M (10’23/4″”) Close : 2.44 M (8′) |
| Feed Tunnel Width | 1.28 M (4′ 15/8″”) |
- Power Distribution Gearbox
- Speed Reduction Gearbox
- Hydraulics
- Brakes
- Front bogie
- Feeding system
- Thrust rollers
- Worm Assembly
It is coupled with the engine for coupling 3 pump sets. The gears are in oil bath; all the gears are of proper alloy steel material and hardened for greater life. Bearings used in gearbox are of reputed make for greater life. Gearbox is provided with oil level indicator, air breather, oil drain plug for better operation and maintenance.
AE-055 is provided with speed reduction gearbox to achieve low speed for paving and high speed for traveling. All the gears are in oil bath and are of proper alloy steel material hardened to get greater life. Gearbox is provided with oil level indicator and oil drain plug for better operation and maintenance.
All hydraulic pumps, motors and hose pipes are of reputed make. Utmost care has been taken in selection of joints so as to minimize chances of hydraulic oil leakage. All ‘O’ rings, grooves are of proper match so that it gives greater life of ‘O’ ring. Maximum use of ms pipe is done as ms pipes occupy less space; they can be easily clamped and reduces Chances of leakage.
The disc brakes can be operated by pushing pedals provided near both the operator’s seat. The safe tire brakes are acting on the speed shaft, which are coupled together drive wheels.
Tandem bogie of solid rubber tyre, size 550 mm x 175 mm four nos. are mounted on equalizer beam to ensure maximum flotation and equal weight distribution. Hydraulic steering sifitted for effort less operation.
Two pallet conveyors with hardened steel chain provide the material to two sets of augers which spreads material on both sides. Hydraulic drive for conveyor and auger. Each of the pallet conveyors can be controlled independently from the operator’s seat.
Two thrust rollers are fixed on heavy oscillating beam provided on front part of the machine.
Worm spreads material in front of screed in total width of pavement. Hydraulic drive for conveyor and auger. Properly sealed bearings are used for greater life as they are always covered with the laying material while paving. Special arrangement for greasing is provided as greasing is required daily for greater life of bearing. Worm is of Ni-hard steel material, properly heat treated for greater service life. Proper covers for chain are provided for greater service life of chain.
Prime Movers
Sensor Paver Finisher AE-055 is powered by kirloskar engine model 6R 1080 TA1, generating 125 HP at 2200 RPM. Engine has sufficient space on all the sides for air draft and cooling of engine. Engine is easily accessible for daily maintenance like checking engine oil, coolant water level, engine suction filter etc. engine starter, alternator can be easily removed for periodic maintenance. Gauges like engine temperature, oil pressure and ampere meter are on sliding panel and are easily visible from operator’s seat.
Thickness and Level Control:
Auto and manual mode compatible. In auto mode, electronic sensors controls the grade and slope of laid surface. It can be accurately controlled as per job requirements. Electronic sensor of MOBA, Germany (imported) is used. MOBA, GERMANY is a major supplier of sensors for paver all over the world. In manual mode, thickness can be controlled by switches provided on screed and con troll panel.
Rear bogie:
Tandem bogie of pneumatic tyres size 10.00 x 20 four nos. are mounted on equalizer beam to ensure maximum floatation and equal weight distribution. Even when driving on a base with large irregularities such as gully cover, speed breaker, all wheels are in continuous contact with the ground.
Hopper:
Movement of the two hoppers is obtained by means of hydraulic cylinder Operated independently by simple switches on control panel. Hopper capacity: 4.25cm.
Screed
Basic screed width of 2.5 meter, hydraulically extendable up to 4.5 meter and further extendable up to 5.5 / 6.0 meter by bolt on extension. Main screed is pivoted at the center point of the machine to assure a constant flatness or work on uneven grounds. Lateral mobile plates are hydraulically operated, sliding on chromium plated telescopic cylindrical guides for wear resistance to achieve paving width up to extendable limit. Screed plate has provision for heatingby8 LPG burners two on each mobile plate and four nos. on main screed plate. Vibration is provided for complete width of screed with infinitely variable frequency from zero to 3000 RPM (50 HZ). Tamping is provided for complete width of screed with infinitely variable frequency from zero to 2000 RPM (33.3 HZ). Theadjustment of the laying mat thickness can be controlled by electronic sensor so as to allow easy modification of grade and slope according to the job requirements.
Maintenance
In Sensor Paver Finisher Shutters are provided on three side of machine which can be easily opened for inspection and maintenance of the machine. Special care has been taken to keep maintenance parts on left side of machine so that maintenance on road can be safe. Filters are kept on outer side of machine for maintenance.
