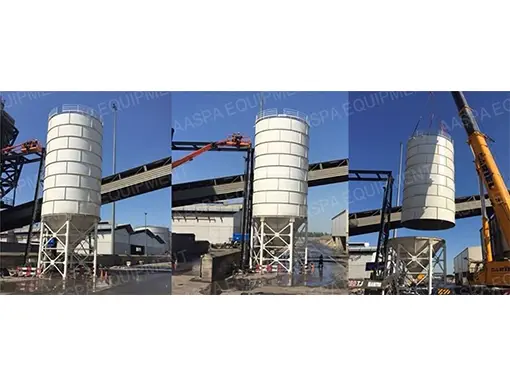

Vertical Storage Silo AS-500
AASPA 500 tones capacity, bolted type cement silo AS-500 is used in very high capacity concrete batching plants which have high amount of cement consumption and also in cement terminals, cement factories and limestone powder stocking applications.
AASPA AS-500 cement silo is equipped with maintenance platform between the legs, cement filling pipe, inner and outer manholes, safety guards, roof flanges for air filter and pressure safety valve, a roof gate for inner manhole and also a cone flange for butter fly valve.
AASPA AS-500 cement silo is supplied together with all necessary silo equipment such as cement screw conveyor with the desired diameter & length, air filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butter fly valve for manual cement discharging.
AASPA AS-500 cement silo is supplied together with all necessary silo equipment such as cement screw conveyor with the desired diameter & length, air filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butter fly valve for manual cement discharging. In case of using the silo for cement terminal or similar application, the screw conveyor can be connected to a loading below to distribute the cement to the trucks.
Parts of AS-500 bolted type cement silo are manufactured by sensitive laser cutting and drilling methods. In the jobsite, parts of cement silos can be assembled easily and sensitively.
Technical Specification
| Silo Capacity | 500 TONS, 385 m3 ( cement density as 1,3 ton/m3 ) |
| Silo Height | 19945 mn |
| Silo Diameter | Ø 6180 mm |
| Quantity Of Silo Legs | 6 |
| Silo Output Diameter | Ø 300 mm |
| Number Of Components | 250 |
| Silo Weight | 28000 Kg |
| Material Of Silo Legs | Ø273 x 12 mm, STEEL PIPE |
| Supports Of Silo Leg | NPL 80 mm CORNER IRON |
| Sheet Metals Of Silo Leg | 20 mm SHEET METAL |
| Conical Part Support Material | 200 mm STEEL C CHANNEL |
| Conical Part Material | ST – 37 ,8 mm SHEET METAL |
| Silo Body Material | ST – 37, 8-6-5 mm SHEET METAL |
| Silo Top Cover Material | ST – 37 , 6 mm SHEET METAL |
| Charging Pipe | 4″ STEEL PIPE UP TO SILO LEG |
| Inner Manhole Is Present | |
| Outer Man Hole Is Present | |
| Silo Roof Includes Handrails | |
| Maintenance Platform Is Present | |
| Structural Analysis Is Made For The Silos And Manufacturing Process Depends On Approved Projects. | |
| painting : 1 layer of anticorrosive paint, 2 layer of final coat epoxy paint, total paint thickness: 140 microns. | |
