Sand Wash Plant

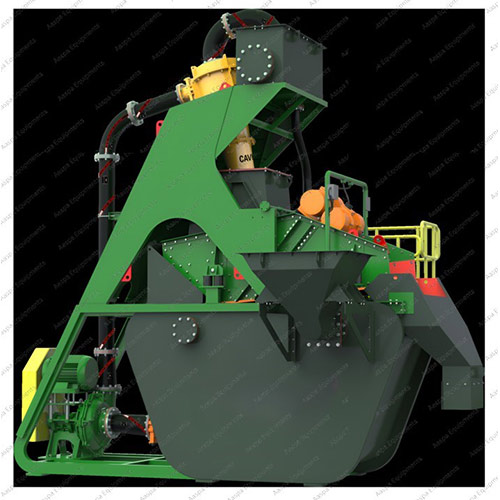

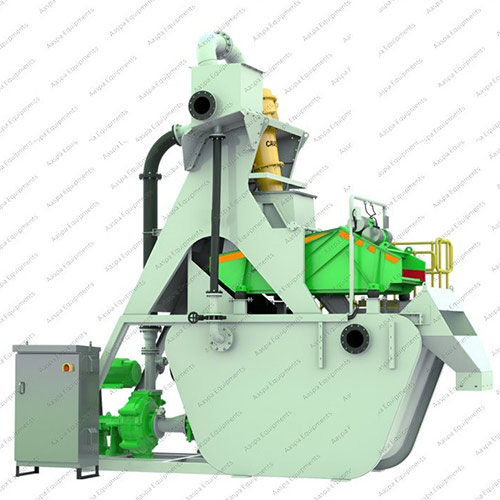

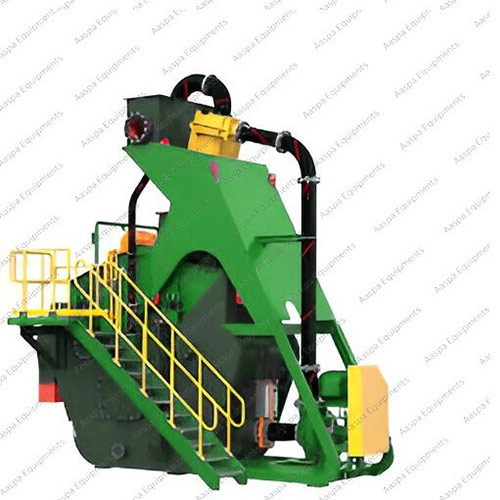

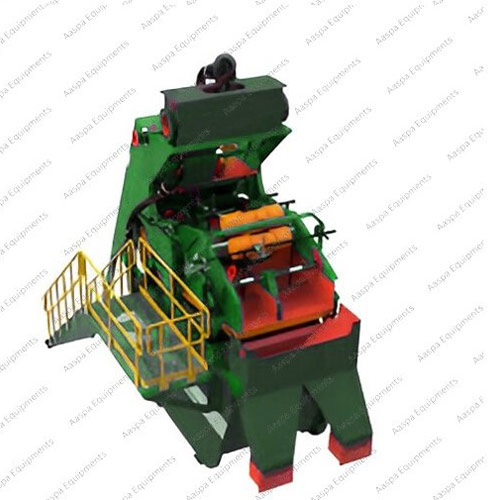

Our range of AASPA SAND WASH PLANT feature industry leading materials technology, process equipment and are fully supported by AASPA Minerals’ unrivalled global service network. These plants contain our advanced technology and are designed to be portable, easy to assemble, maintain and operate. AASPA SAND WASH PLANT are capable of meeting the needs of even the most experienced of sand producer while proving intuitive and easy to operate for a new entrant.
Sub Heading
Sub Heading
Sub Heading
• Lined with Linatex premium rubber
• Compact skid design (within standard transport parameters)
• Sump features a mesh layer to prevent larger particles from damaging the Warman pump or Cavex hydrocyclone
• Sump inspection hatch facilitates easy maintenance
• Flexible platform and stairs configuration
• Panels and spigot can be easily replaced if required
• Constructed using world-class components
• A Variable Frequency Drive (VFD) (optional) ensures the plant continues to operate optimally regardless of any changes in feed
• The VFD can reduce the plant’s overall power consumption and commissioning time, while increasing the wear-life of the pump
• Flexibility to process wet and dry slurry
• A floating ball switch is located inside the sump to protect the Warman pump from dry runs.
• Minimal foundation work required during installation
• All discharge and connection points are designed to be operated with ease Performance
• Drier product compared to sand screw plants
• Fewer moving parts compared to sand screw plants
• Rapid assembly
• Maximum recovery
• Low energy consumption
• Low total cost of ownership
• 100% direct washing is enabled through the hydrocyclone
• Supported by the AASPA Minerals global service network
1. The Warman centrifugal slurry pump, pumps the slurry from the sump to the Cavex hydrocyclone at the top of the plant. The Cavex hydrocyclone separates fine from coarse particles.
2. Finer particles are discharged at the top of the hydrocyclone which are then passed to an overflow box at the side of the hydrocyclone and is then fed to the effluent treatment via hoses and pipes.
3. Coarse particles are fed to the Enduron dewatering screen through the underflow of the hydrocyclone. The Enduron dewatering screen removes the water and residual fines from the product. The Enduron screen also features spray bars if further cleaning of the material is required.
4. Water and residual fine material are discharged through the screen media and passed into the sump.
5. Saleable sand is discharged at the front of the screen through chutes where it is stockpiled ready for sale. Linatex premium rubber is used to protect areas of high wear throughout the entire plant.
Cavex hydrocyclones
Cavex hydrocyclones use a proven design to separate material while delivering maximum efficiency, capacity and a long wear life. The laminar spiral inlet geometry of a Cavex hydrocyclone is fundamental to increasing productivity while lowering total ownership costs. By minimising flow resistance through the feed chamber, Cavex hydrocyclones can process substantially higher volumes of sand than conventional Hydrocyclones. Cavex hydrocyclones also feature a cut point perfectly suited to sand wash applications.
Enduron dewatering screens
Enduron dewatering screens are proven performers in sand washing applications. Effective in reducing moisture content in sand products, these screens also offer exceptionally high throughput per unit screening area. These linear motion screens feature a lock-bolted frame with epoxy adhesive applied between all mating surfaces, adding a layer of moisture and corrosion protection. Modular screen deck panels deliver long life and easy handling and maintenance, making it simple to replace areas of localised wear. Moulded rubber buffers are used on all four support points to isolate live frame vibrating loads. Enduron dewatering screens are lined with Linatex premium rubber and offer excellent water removal and high load capacity, while lowering total cost of ownership.
Warman WGR Gen 2 slurry pump
AASPAMinerals has specifically designed an engineered the Warman WGR pump for sand and aggregate applications. This pump offers several innovative features including improved hydraulic design, enhanced gland options and a simplified wet-end. In addition, it also delivers added features for improved safety and reduced maintenance such as a drainage plug situated on the casing (which can be pulled in cold months so that the pump does not freeze or clog when stopped).
Linatex hose and rubber lining
Linatex premium rubber is a 95% natural rubber that exhibits outstanding resilience, strength and resistance to cutting, tearing and abrasion. With over 90 years of handling aggressive materials in quarries across the globe, Linatex is still ranked as the premium wear resistant rubber for protecting processing equipment in wet or highly abrasive applications. It is the unique liquid phase compounding process that gives Linatex premium rubber its extraordinary physical properties and outstanding performance. This unique process causes minimal mechanical disturbance to the molecular structure of the finished rubber, resulting in significant cost benefits for customers. With Linatex premium rubber, there is no equivalent when it comes to wet abrasion.
Isogate WS slurry knife gate valve
The Isogate WS series slurry knife gate valve has a unique robust design providing reliable service, together with ease of maintenance and cost effectiveness in a light weight, compact package. The Isogate WS series knife gate valve combines a low maintenance design and rugged heavy-duty construction with a wide range of available materials, making it perfectly suited to sand washing applications.
Plant configuration
| MODEL | Plant capacity | Warman WGR series slurry pump | Pump motor requirements (kW) | Cavex CVX series hydro cyclone | Enduron dewatering screen | Screen motor requirements (kW) | Isogate knife gate valve | Linatex slurry hose |
|---|---|---|---|---|---|---|---|---|
| ASWP 25 | 25 TPH | 100 F3-WGR | 15 | 250CVX | VD 6 | 2×1.1 | WS 6 | 100NB |
| ASWP 50 | 50 TPH | 150 F4-WGR | 30 | 400CVX | VD 9 | 2×1.9 | WS 8 | 150NB |
| ASWP 70 | 70 TPH | 150 F4-WGR | 37 | 500CVX | VD 9 | 2×1.9 | WS 8 | 200NB |
| ASWP 100 | 100 TPH | 200 F4-WGR | 45 | 500CVX | VD 12 | 2×4.53 | WS 10 | 200NB |
| ASWP 150 | 150 TPH | 250 F5-WGR | 75 | 650CVX | VD 15 | 2×4.53 | WS 12 | 250NB |
| ASWP 200 | 200 TPH | 250 F5-WGR | 90 | 650CVX | VD 18 | 2×4.53 | WS 12 | 250NB |
Plant ASWP specifications
| MODEL | Dimensions (m) | Weight (kg) | Feed spout height for dry feed loading (m) | Feed nozzle height for slurry feed (m) | Tailing disposal height (m) | Input tonnage (TPH) | Input flowrate (m3/hr) | Product moisture | Power per ton (kW) |
|---|---|---|---|---|---|---|---|---|---|
| ASWP 25 | 4.5 (l) x 3.2 (w) x 4.8 (h) | 3,875 | 2.1 | 1.5 | 4.2 | 25 | 85 | ||
| ASWP 50 | 5.2 (l) x 4.2 (w) x 5.3 (h) | 7,750 | 2.8 | 2.0 | 4.5 | 50 | 169 | ||
| ASWP 70 | 6.6 (l) x 2.9 (w) x 5.8 (h) | 8,600 | N/A | 1.765 | 5.05 | 70 | 190 | ||
| ASWP 100 | 6.3 (l) x 4.6 (w) x 6.3 (h) | 10,050 | 3.08 | 2.2 | 5.5 | 100 | 337 | 12-15% maximum | 1-1.2 |
| ASWP 150 | 6.9 (l) x 5.1 (w) x 7.8 (h) | 16,000 | 3.7 | 2.68 | 7.1 | 150 | 507 | ||
| ASWP 200 | 7.9 (l) x 5.5 (w) x 8.2 (h) | 16,700 | 3.7 | 2.68 | 7.1 | 200 | 676 |
Plant configuration
| MODEL | ASDP 70 | ASDP 100 | ASDP 150 |
|---|---|---|---|
| Plant capacity | 70 TPH | 100 TPH | 150 TPH |
| Warman WGR series slurry pump | WGR-100 | WGR-150 | WGR-150 |
| Pump motor requirements (kW) | 18.5 | 22 | 30 |
| Cavex CVX series hydro cyclone | 400 CVX | 400 CVX | 500 CVX |
| Enduron dewatering screen | VD12 | VD15 | VD18 |
| Screen motor requirements (kW) | 4.53×2 | 4.53×2 | 4.53×2 |
| Isogate knife gate valve | WS 6 | WS 8 | WS 8 |
| Linatex slurry hose | 100NB | 150NB | 200NB |
Plant ASWP specifications
| MODEL | ASWP25 | ASWP50 | ASWP70 |
|---|---|---|---|
| Dimensions (m) | 6.5(l) × 3.25(w) × 6.1(h) | 7.2(l) × 3.45(w) × 6.2(h) | 7.5(l) × 3.75(w) × 6.9(h) |
| Weight (kg)* | 5900 | 6300 | 8500 |
| Feed ASWPout height for dry feed loading (m) | 4.2 | 4.35 | 4.35 |
| Feed nozzle height for slurry feed (m) | 3.6 | 3.75 | 3.75 |
| Tailing diASWPsal height (m) | 5.2 | 5.45 | 5.5 |
| Input tonnage (TPH) | 50–70 | 80–110 | 140–180 |
| Input flowrate (m³/hr) | 112 | 165 | 225 |
| Product moisture | – | 15–20% maximum | – |
| Power per ton (kW) | 1–1.2 | 1–1.2 | 1–1.2 |
Aaspa Sand Wash Plant ASWP-Series
The AASPA SAND WASH PLANT ASWP-series sand wash plant is designed to remove excess fines or coarse material in a simple way, providing exceptional washing results while delivering clean, low moisture product for conveying or stockpiling. The AASPA SAND WASH PLANT ASWP-series creates one type of sand which is discharged using the discharge chute at the front of the plant.
