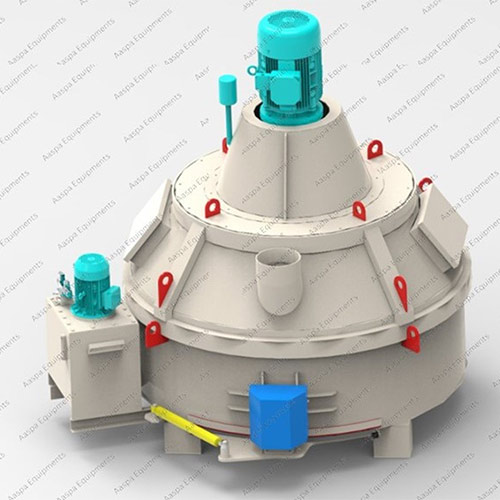

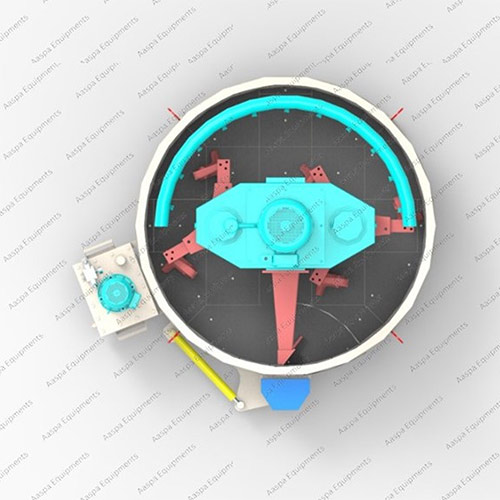

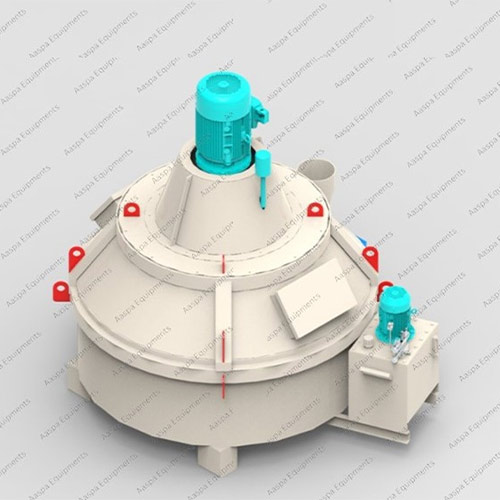

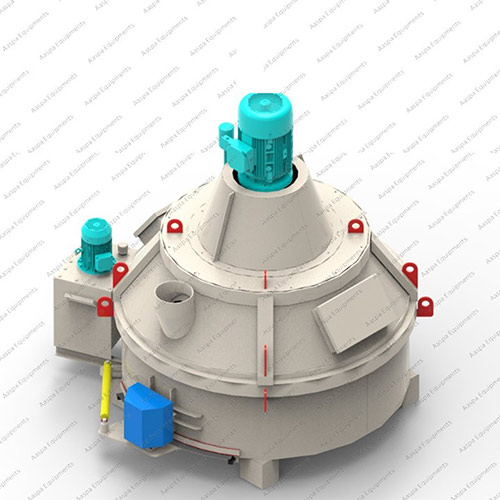

Planetary-Mixer
WIDE RANGE OF MIXERS & CUSTOMIZED SOLUTIONSM
The size of our Planetary Mixer ranges from 10 to 4000 liters of compacted concrete output, covering every possible need from small laboratory mixers to the largest production plants. The excellent performance of AASPA Planetary Mixer are recognized in several application fields: readymix concrete, production of prestressed / precast elements, block and pavers, concrete pipes, dry mortar mix, butalso in different sectors such as glass, refractory materials for foundries and chemical products. Depending on the type of application, the mixers can be equipped with several accessories and options to optimize their productivity, mixing quality and life expectancy. Whenever necessary, we work with our customers in the development of new solutions that best suit their specific needs.
Sub Heading
Sub Heading
Sub Heading
Salient Features:
Replaceable wear-resistant liners and mixing blades
Aaspa make Planetary Mixer is designed for high-performance and uniform mixing of concrete, RCC, UHPC, and other specialized construction materials. This Planetary Mixer ensures homogenous mixing through its advanced planetary mixing principle, suitable for precast, paver block, and high-strength concrete applications.
| Parameter | Specification |
|---|---|
| Model | AMP-75 |
| Batch Capacity | 0.75cubic meters (500ltr) |
| Dry filling capacity | 1125ltr |
| Mixing System | Planetary Motion (Counter Rotating Blades) |
| Gear Box Make | REGGIANA/DYNAMICOIL (ITLY MAKE) |
| No. Of Gear Box | 1 Nos. |
| Drive Motor | 40HP (IP-55) |
| Motor Make | CG/Havells |
| No. Of Motor | 1 Nos. |
| Bottom Liner Plates | High wear-resistant, replaceable hardened steel liner plates |
| Wall Liner Plates | High wear-resistant, replaceable hardened steel liner plates |
| Mixing Arms | One Mixing Starquipped with four mix arms + 1 side arms |
| Nos of Scrapping Arms | 01 Nos. |
| Tips | Ni Hard with replaceable |
| Discharge System | Hydraulic-operated discharge gate with manual operation for emergency operation. |
| Solenoid valve | 24V DC forgate operation. |
| Gate Operation | Equipped with Open and Close limit switch |
| Maintenance Access | Easily accessible service doors for cleaning & maintenance with limit switch for safety |
| Top Cover | With Inspection window half-moon door protected by limit switch |
| Finish | Industrial-grade Primer and Auto paint for rust protection |
| Customisation | Possible as per customer requirement |
| Parameter | Specification |
|---|---|
| Model | AMP-05 |
| Batch Capacity | 0.5 cubic meters (500 ltr) |
| Dry filling capacity | 750 ltr |
| Mixing System | Planetary Motion (Counter Rotating Blades) |
| Gear Box Make | REGGIANA / DYNAMIC OIL (ITLY MAKE) |
| No. Of Gear Box | 1 Nos. |
| Drive Motor | 25 HP (IP-55) |
| Motor Make | CG/Havells |
| No. Of Motor | 1 Nos. |
| Bottom Liner Plates | High wear-resistant, replaceable hardened steel liner plates |
| Wall Liner Plates | High wear-resistant, replaceable hardened steel liner plates |
| Mixing Arms | One Mixing Star quipped with four mixing arms + 1 side arms |
| Nos of Scrapping Arms | 01 Nos. |
| Tips | Ni Hard with replaceable |
| Discharge System | Hydraulic-operated discharge gate with manual operation for emergency operation. |
| Solenoid valve | 24 VDC for gate operation. |
| Gate Operation | Equipped with Open and Close limit switch |
| Maintenance Access | Easily accessible service doors for cleaning & maintenance with limit switch for safety |
| Top Cover | With Inspection window half-moon door protected by limit switch |
| Finish | Industrial-grade Primer and Auto paint for rust protection |
| Customisation | Possible as per customer requirement |
