Reversible Concrete Mixer (Arm-Series)
ARM SERIES
Aaspa make ARM series is widely used on various construction sites as it’s a compact batching machine having features like separate weighing of material, auto water dozing system, admixture dozing and printing facility and it comes on 4 pneumatic wheels with tow bar facility which makes it easy to move and shift on site.
Optional Accessories
• Printing facility
• Auto admixture dozing
system
• Single/two/three bin system
Sub Heading
Sub Heading
Sub Heading
ARM SERIES

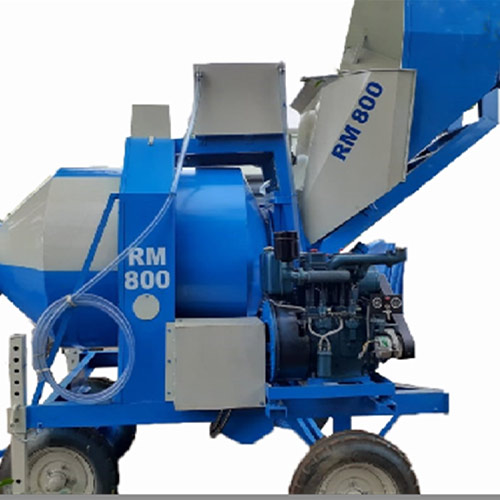

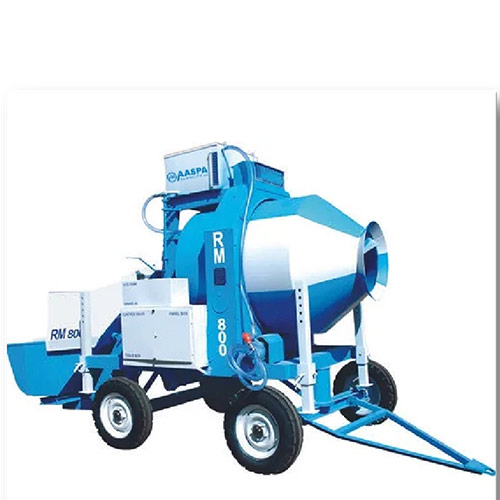

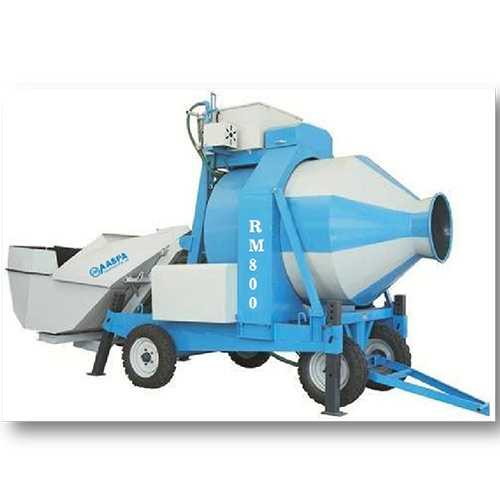

A new innovation from Aaspa Equipment made for the site where electrical supply is not available so we had combined the diesel engine with unique reversible drum mixer so one has to carry only one unit instead of separate DG and machine. We have proven our state of the art work and design and this machines are widely used across India. This Reversible Concrete Mixer Machine has all the unique features like separate weighing of material, auto water dozing system, tow bar facility and micro processor based control panel.
| MODEL | ARM 550 E | ARM 800 E | ARM 1050 E | ARM 1400 E |
|---|---|---|---|---|
| Output Capacity | 8-10 M³ | 10-12 M³ | 12-15 M³ | 15-17 M³ |
| Mixer type | Reversible drum type mixer | |||
| Mixing and discharge of concrete | Forward rotation of the drum mix the material and reverse rotation of the drum discharge the concrete | |||
| Main drive of the mixer | 10 HP | 10 HP | 15 HP | 20 HP |
| Material weighing system | Digital load cell based weighing of the material in each bin | |||
| Water tank capacity | 150 litre | 200 litre | 250 litre | 300 litre |
| Water feeding system | Flow rate based accurate water feeding system | |||
| Pneumatic tyres | 4 no | 4 no | 4 no | 4 no |
| Hydraulic tank capacity | 40 litre | 40 litre | 60 litre | 90 litre |
| Centralized lubrication system | Inbuilt centralized lubrication system | |||
| Suggested Tow bar facility DG Set | Yes | Yes | Yes | Yes |
| Control panel | Micro processor based control panel | |||
| Total connected power | 12.5 HP | 12.5 HP | 17.5 HP | 23 HP |
| Suggested DG set | 25 KVA | 25 KVA | 30 KVA | 40 KVA |
| MODEL | ARM 800 DI | ARM 1050 DI |
|---|---|---|
| Output capacity/Hour | 10-12 M³ | 12-15 M³ |
| Mixer type | Reversible drum type mixer | |
| Mixing and discharge of concrete | Forward rotation of the drum mix the material and reverse rotation of the drum discharge the concrete | |
| Main drive of the mixer | 16 HP Air cooled diesel engine | 20 HP air cooled diesel engine |
| Material weighing system | Digital load cell based weighing of the material in each bin | |
| Water tank capacity | 200 litre | 250 litre |
| Water feeding system | Auto water dozing system | |
| Pneumatic tyres | 4 no | 4 no |
| Hydraulic tank capacity | 200 litre | 250 litre |
| Centralized lubrication system | Inbuilt centralized lubrication system | |
| Suggested Tow bar facility DG Set | Yes | Yes |
| Control panel | Micro processor based control panel | |
| Total connected power | 12.5 HP | |
| Suggested DG set | 80 AMP | |
